For viscous drum contents, made of grey cast iron or red bronze, brass closing plate.
Seals (outer): Chipboard
For drum threads R 1/2", R 3/4", R 1", R 1 1/4", R 1 1/2", R 2", R 2 1/2", R 3", R 4".
Horizontal drum roller
This drum roller with an integral drip tray is used for drums inside a heating cabinet.
The neccessary heating time especially for melting processes can be reduced in a respectable dimension by the use of a drum roller during the heating phase.
Taps
Decanting taps
For viscous fluids in drums, in grey iron or red iron, brass locking plate.
Seals (external) in grey cardboard.
For drum threads R 1/2", R 3/4", R 1", R 1 1/4", R 1 1/2", R 2", R 2 1/2&", R 3", R 4".

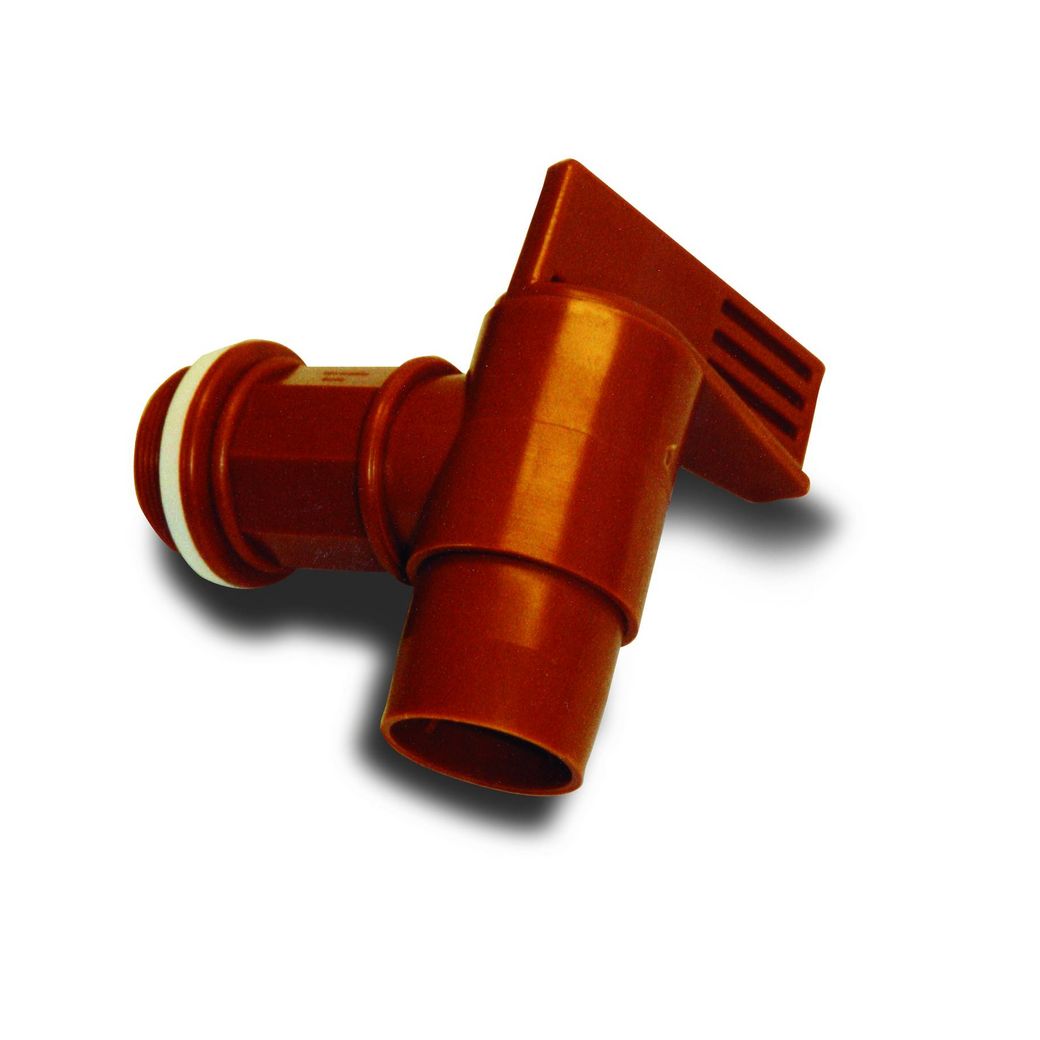

Polyethylene drum tap
Drip free
Heat resistant to max. 60°C.
External seal: in Buna rubber.
Attachment thread R 2", slightly tapered.
Easy to screw in and secure seal.
"Dinga" tap
For heating oil, in brass Through flow opening Ø 15 mm, sliding.
Outlet self closing and drip free.
Seals:
a) internal: Perbunan, external PVC (resistant to heating oil and petrol)
b) external: Teflon external Viton (resistant to solvents) Attachment thread R 3/4".
"Alko" oil draining tap
Attachment thread R 3/4".
In polyethylene With sprayed-on seal taper at thread socket and permanently sprayed-flow controller, drip-free even for highly fluid contents, resistant to mineral oils, watercontaining chloride and all non-oxidising acids, leaching solutions and salts.
Drum keys
Drum Keys (simple design)
In Aluminium, Suitable for all drum closures.
R 3/4", und R 2".
Aluminium makes for light handling and freedom from sparks.
"Fass-Knacker" Drum Cutter
50 - 225 l Metallfässer for all steel drums of 50 - 225 litres.
With this tool, by using its leverage power, you can cut out the lid of all beaded drums, steel drums and sheet metal containers of 50 - 225 litres, up to a sheet thickness of 1.5 mm.
It gives a smooth clean cut, entirely safe. No injuries, no danger of explosion. The knife cannot run out of the cut, no slipping rollers.
In under a minute you can convert your steel drum into vertical barrels for water, garbage, storage etc. or other purpose such as scaffolding support.
Knives in W.-No. 1.2550, type steel, sealed in chrome bath to resist sparking
Thread adaptors
- 2" MAUSER coarse thread
- 2" Whitworth pipe thread
- 2" Tri-Sure coarse thread
- 2" Whitworth pipe thread
- (Canister-)external coarse thread:
- 2" Whitworth pipe thread
