Product examples
Warming ovens product examples

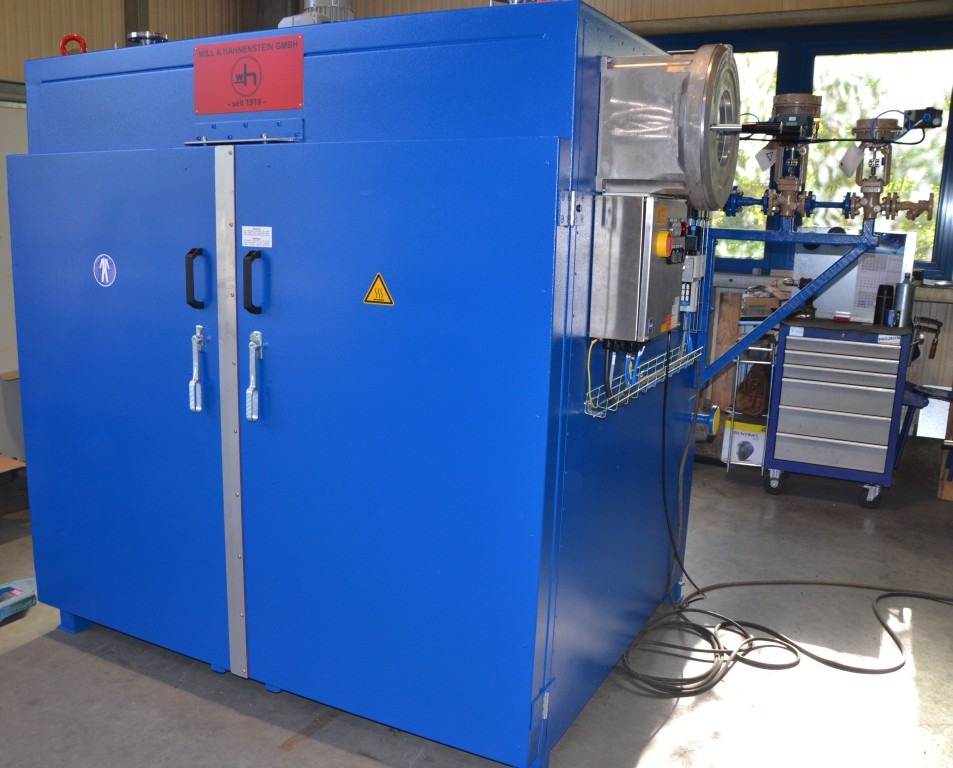

2 steam-heated warming chambers
Features: Equipped with an integrated finned-tube heating coil, a grating intermediate floor (upper level), and 6 spill containment trays.

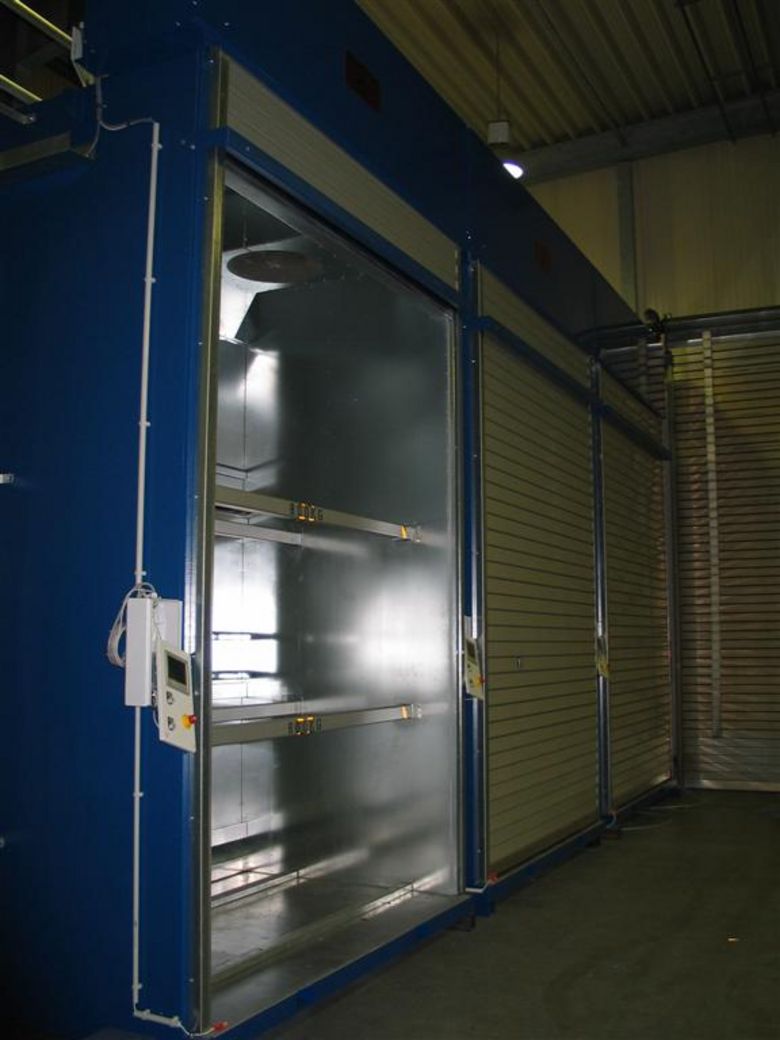

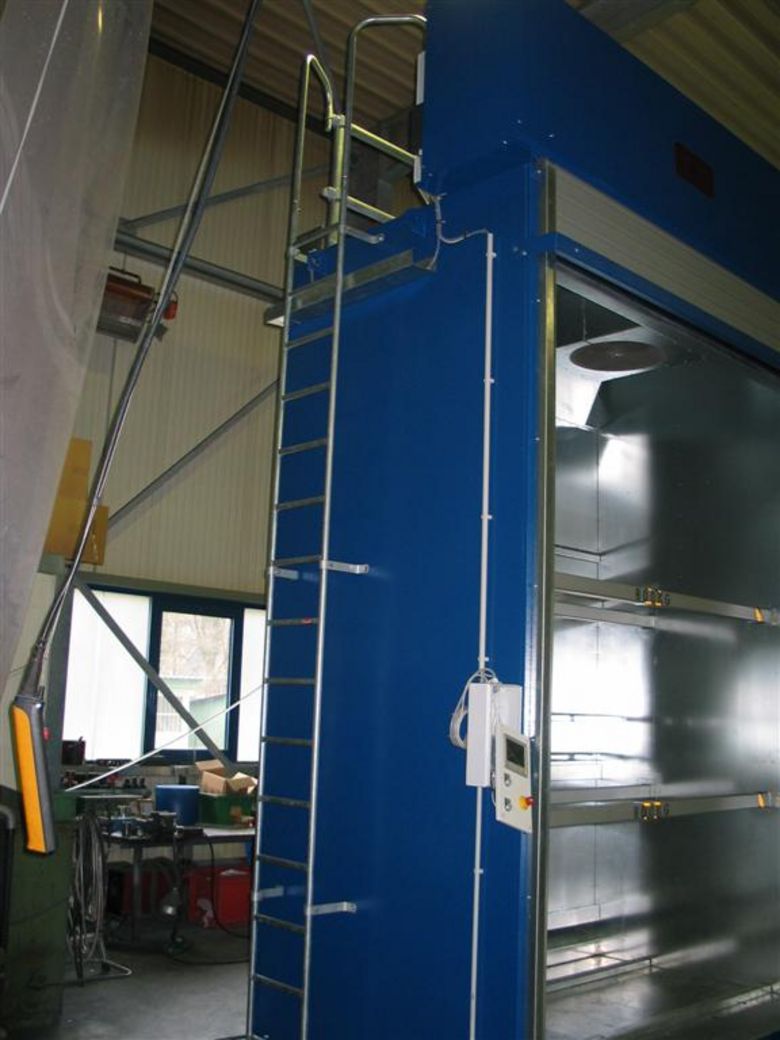

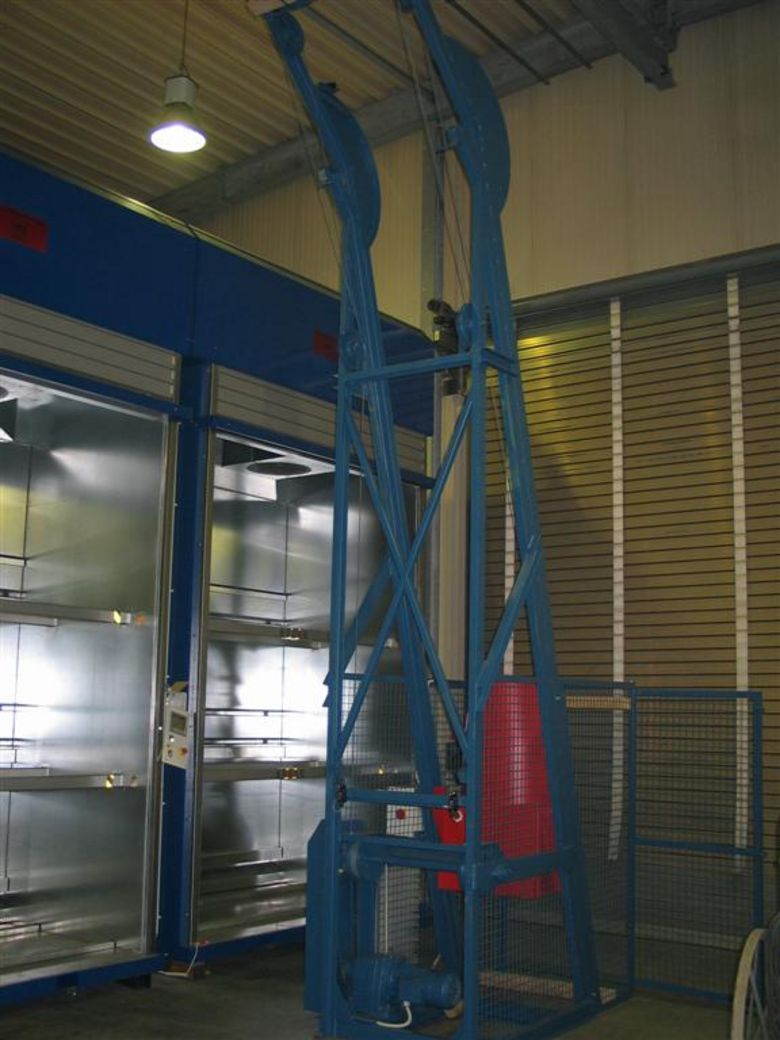

3-storey Climate chamber with rolling shutter
Equipped with rolling shutters, electric heating and cold water cooling.

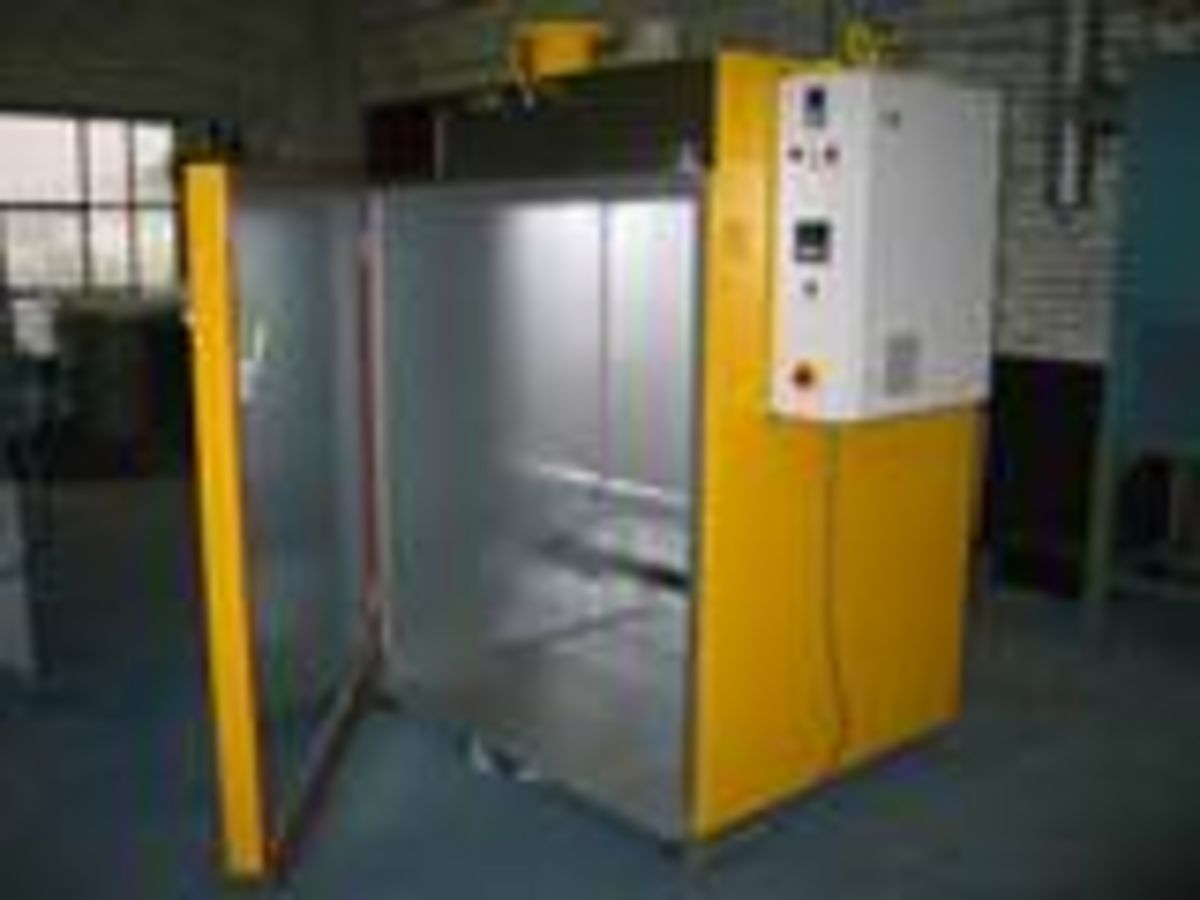

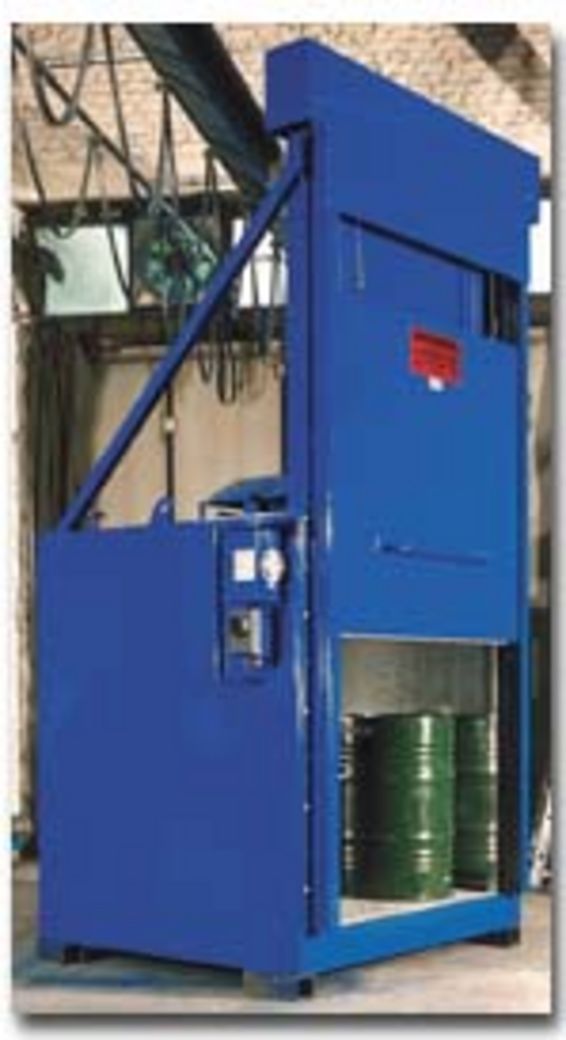

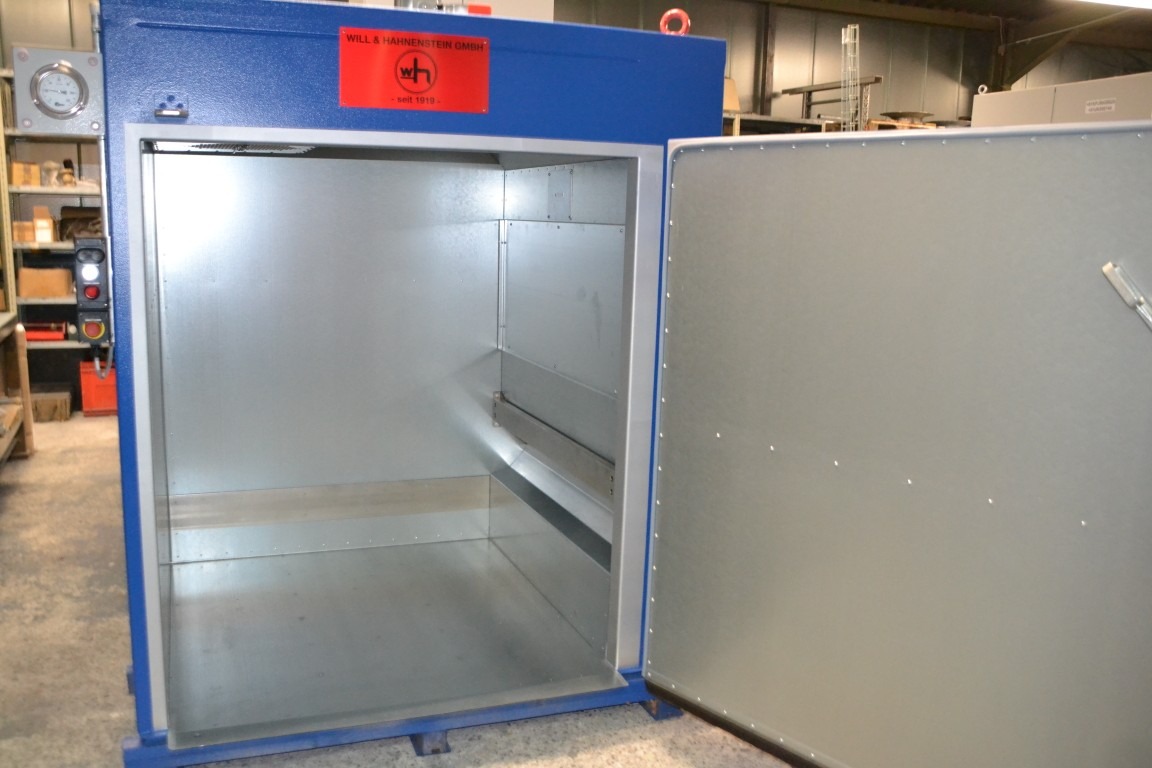

Thermo-Eco-Boxes
According to the demands these cabinets can be equipped with electric heating systems, thermal oil or steam heat exchangers. The internal equipment and material is also variable.

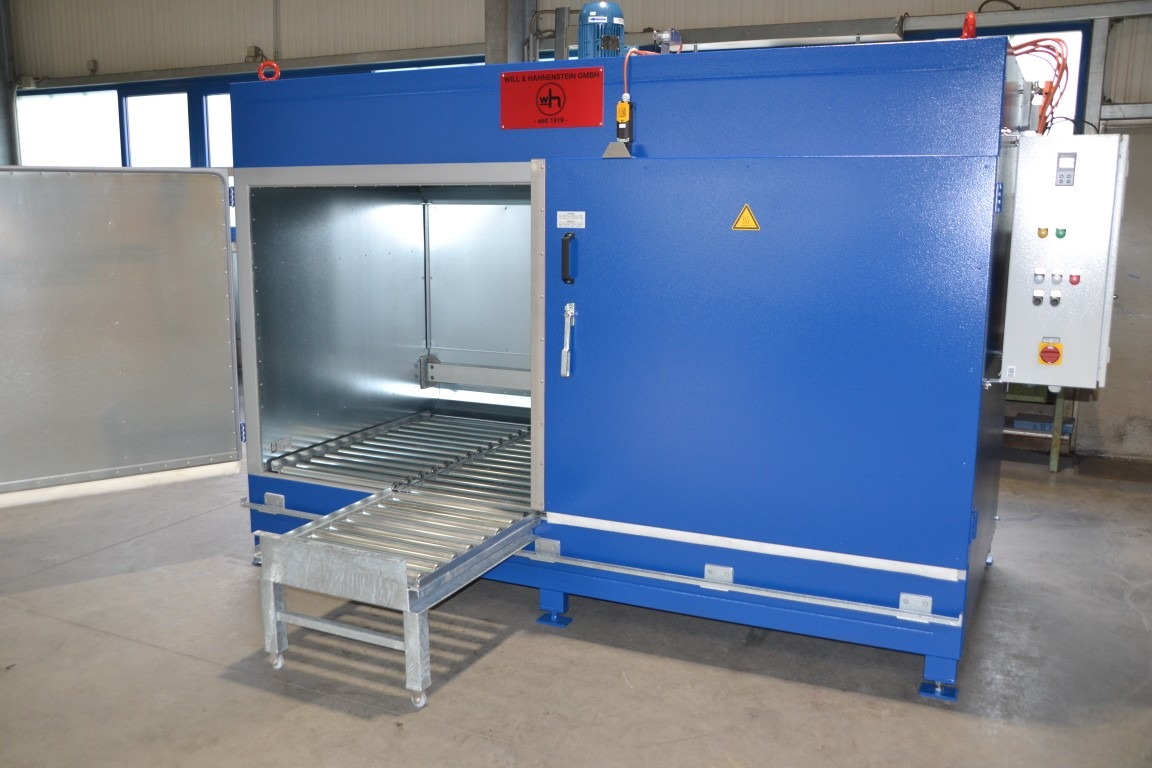

Heating chamber with roller conveyor
Equipped with a wire mesh grate and two spill trays.

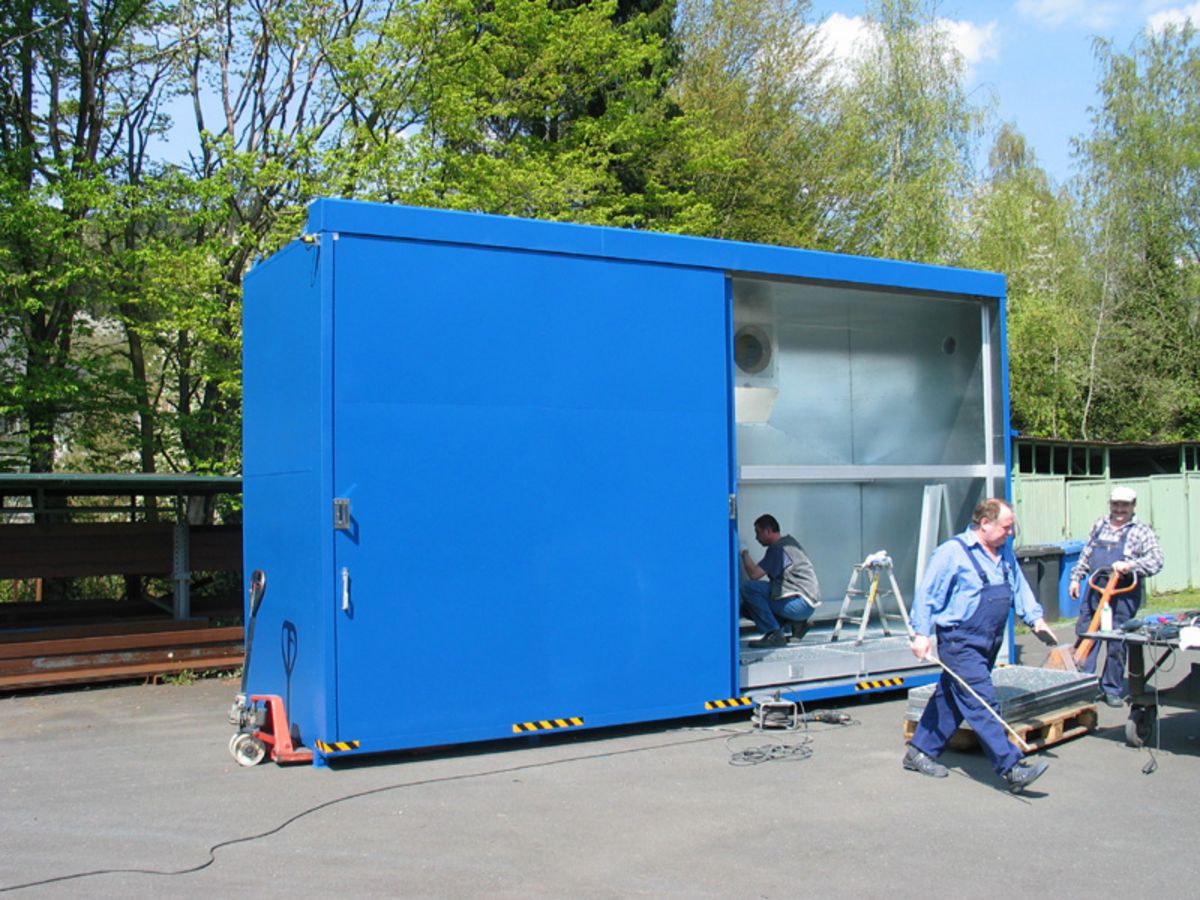

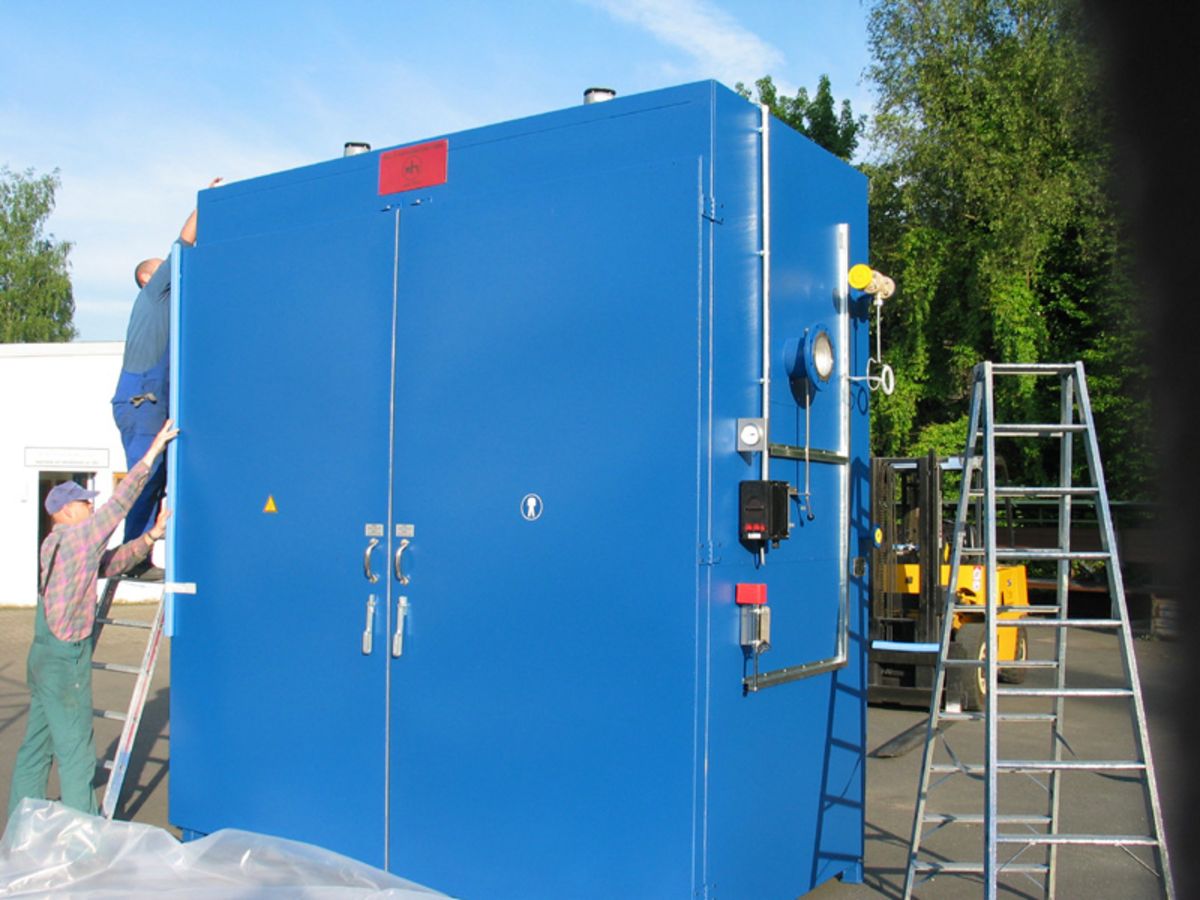

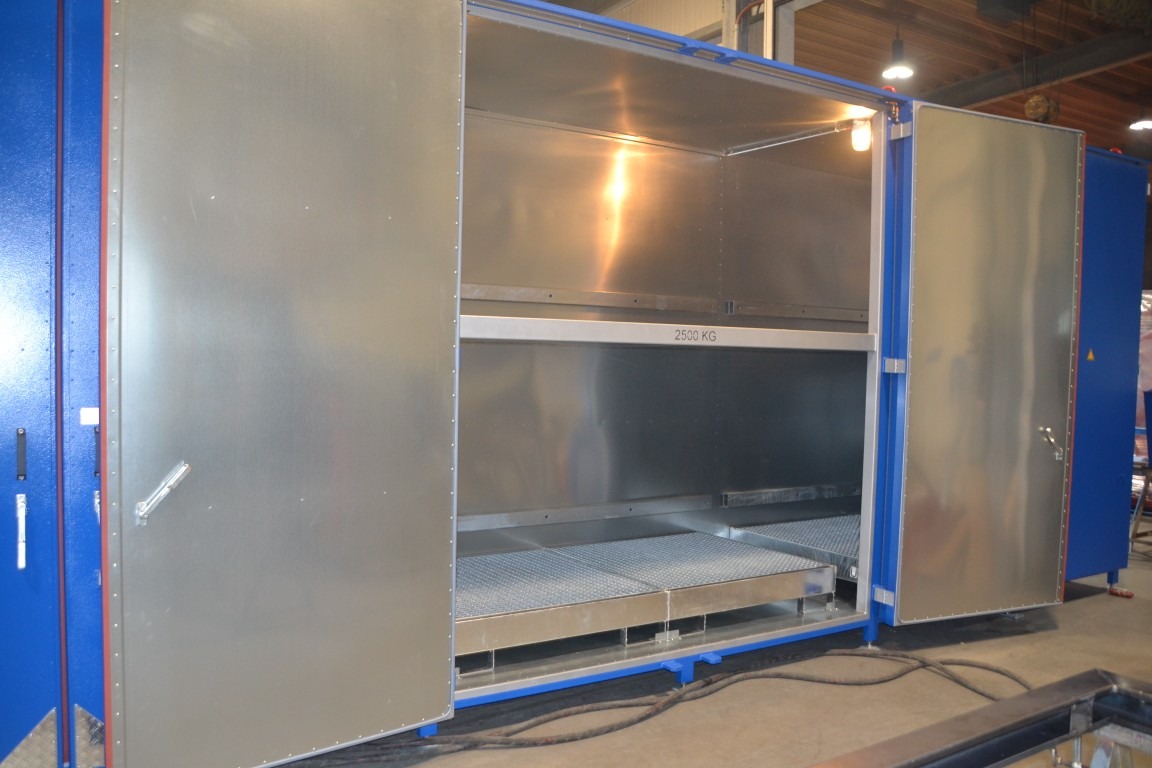

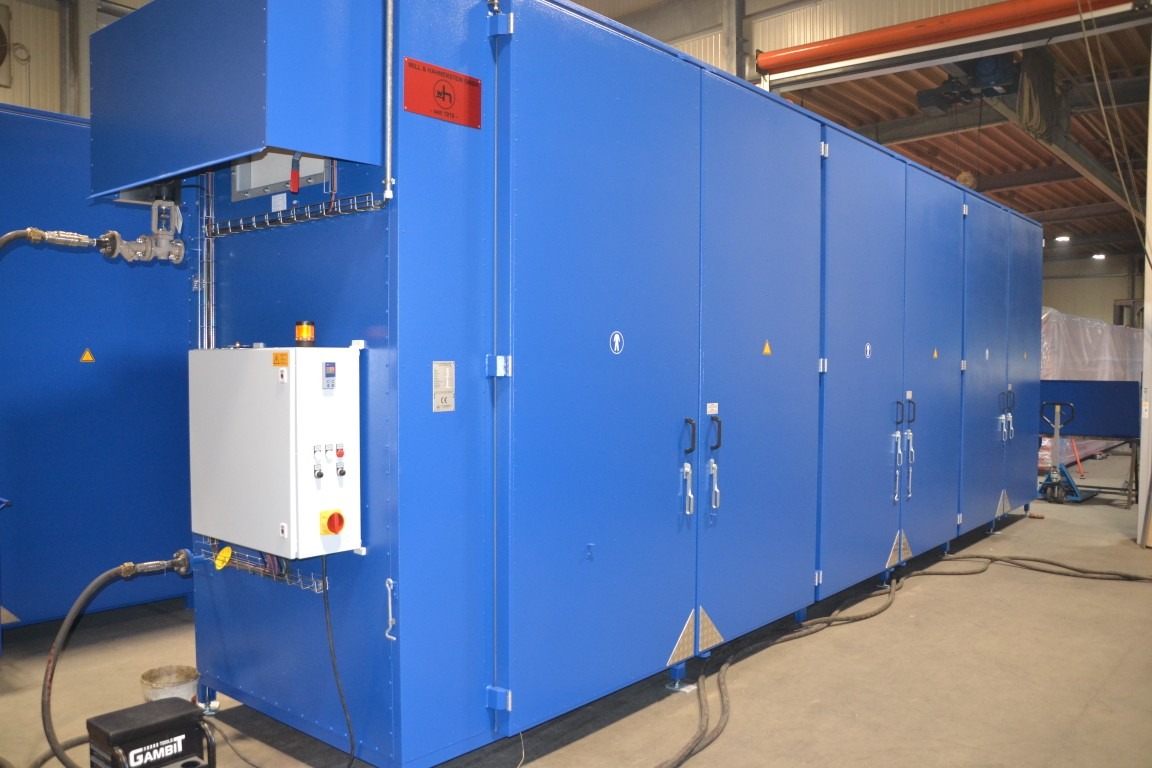

Two or three storey heating cabinets
These cabinets offer a large storage capacity using only a smahl footprint aerea. With an own weather protection roof or by using an existing shelter at site they can be placed outside and make it easy to store material free of freezing or even at higher temperatures. Hot water, steam or electricity are the most common heating sources.

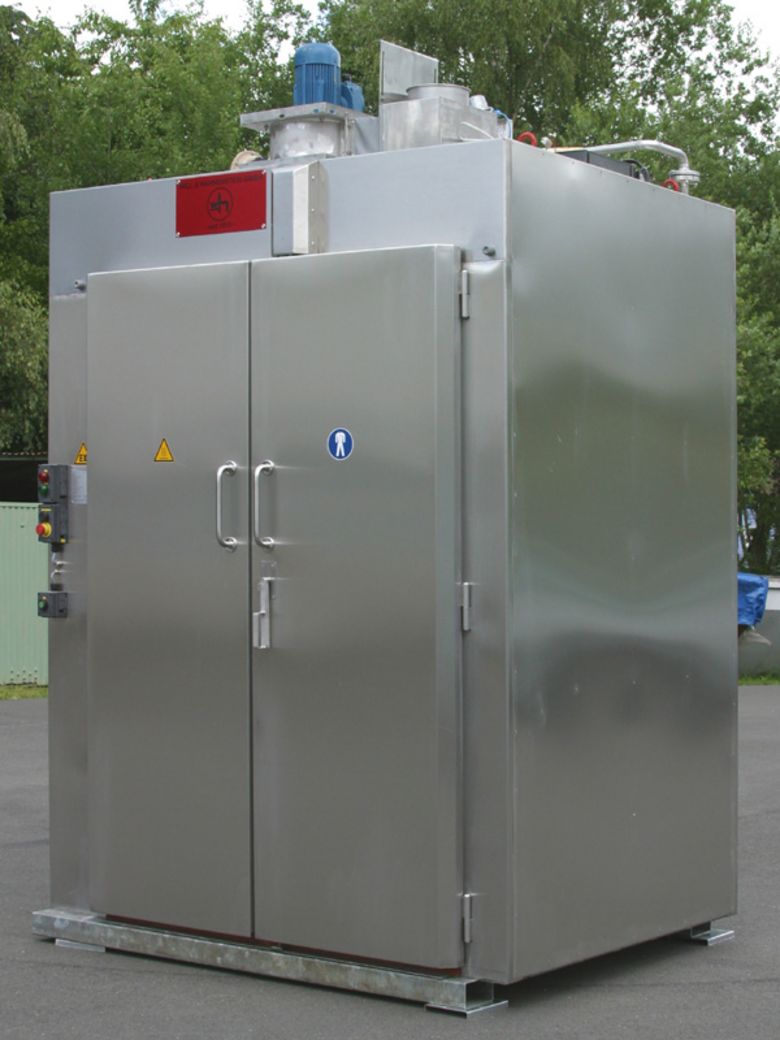

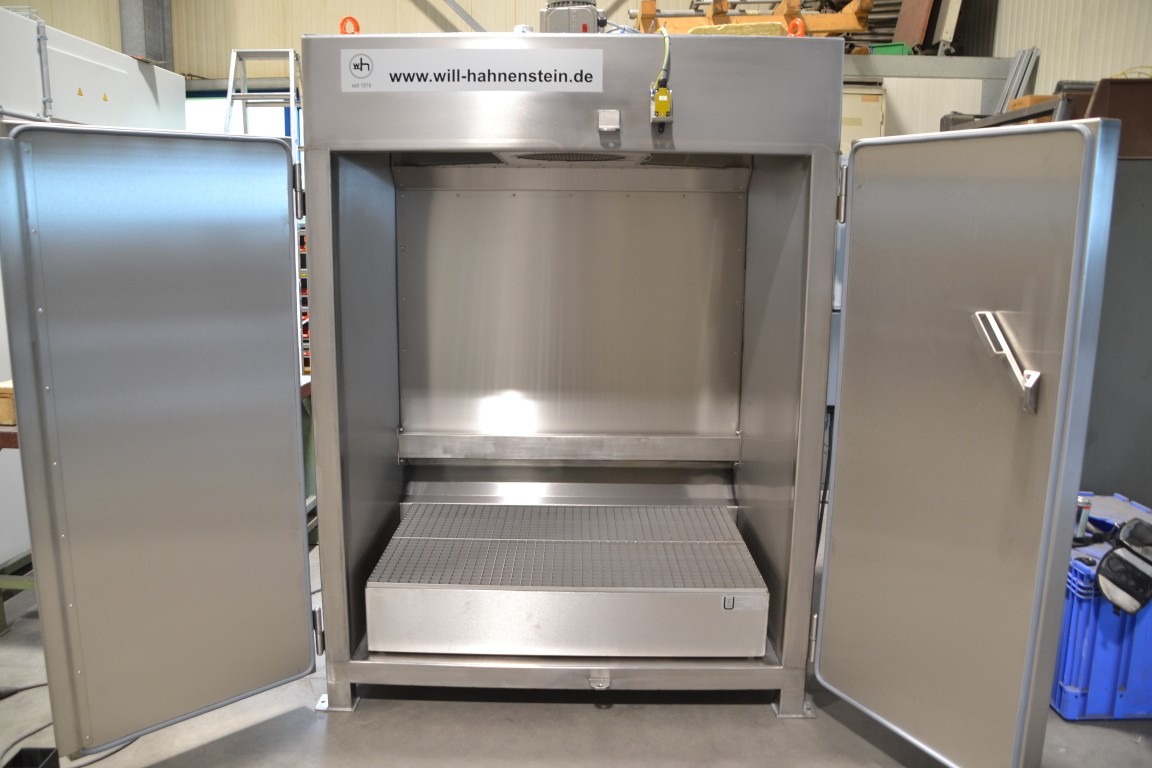

Stainless steel cabinets
Because a lot of materials evapurate aggresive fumes during heating the protection of corrosion for heating equipment is neccessary. Various stainless steel versions using SS 304, 316Ti, 316L or other qualities are available.

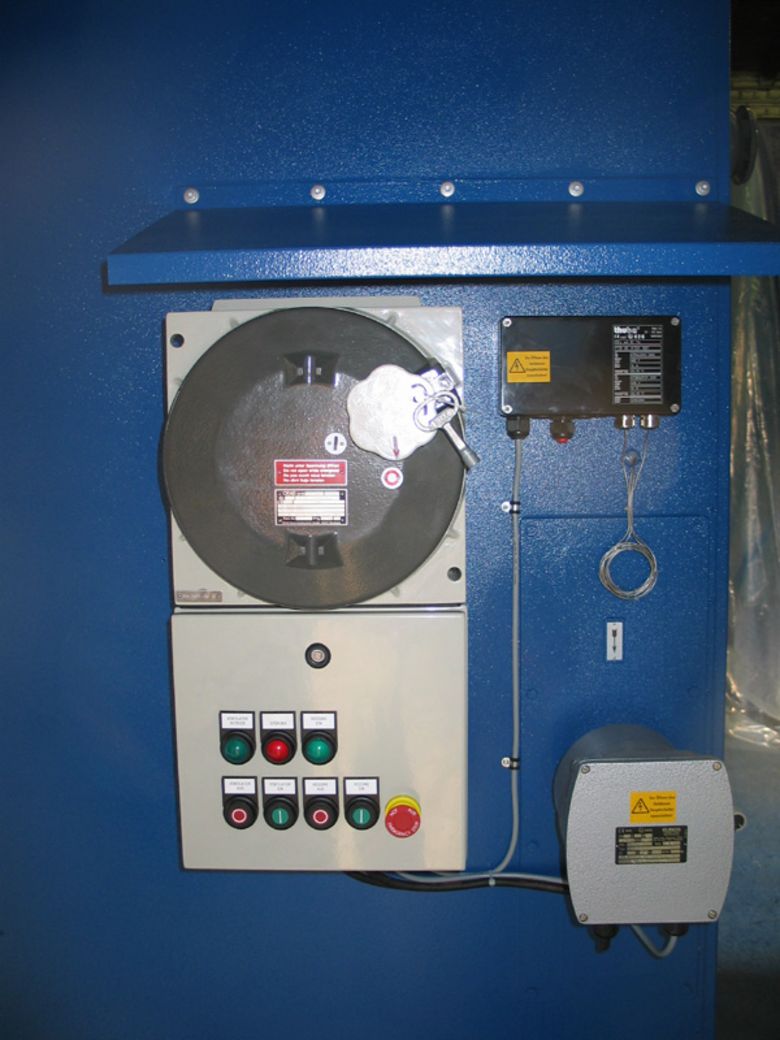

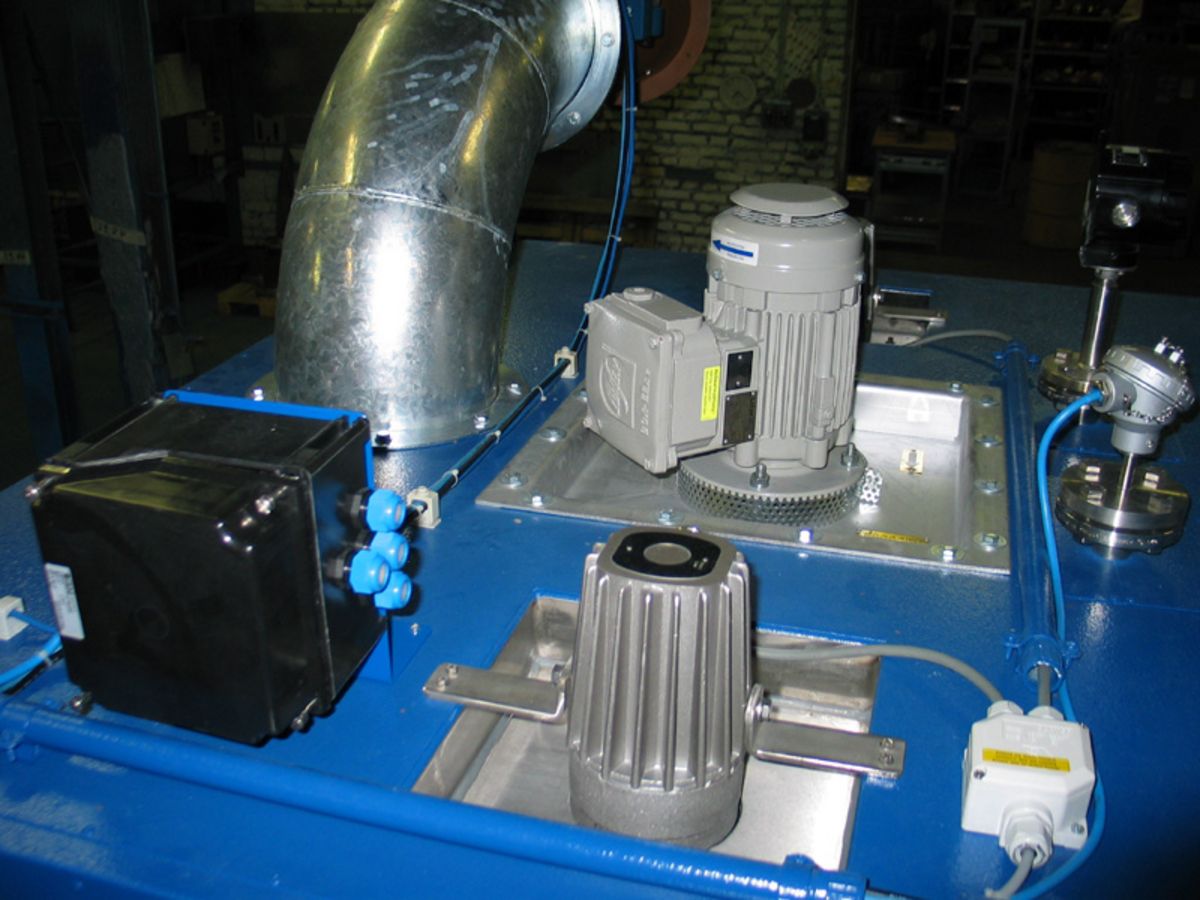

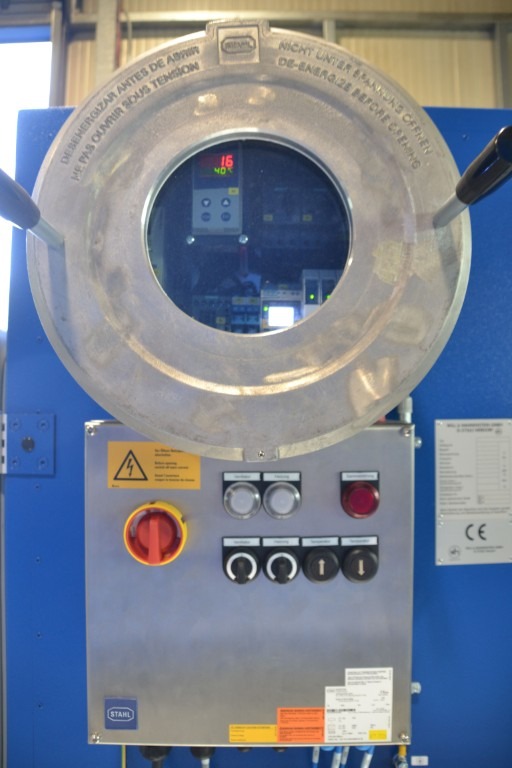

Flameproof cabinets according ATEX
To prevent the oven interior from being classified as Zone 0, we can implement various technical ventilation and atmospheric extraction concepts.

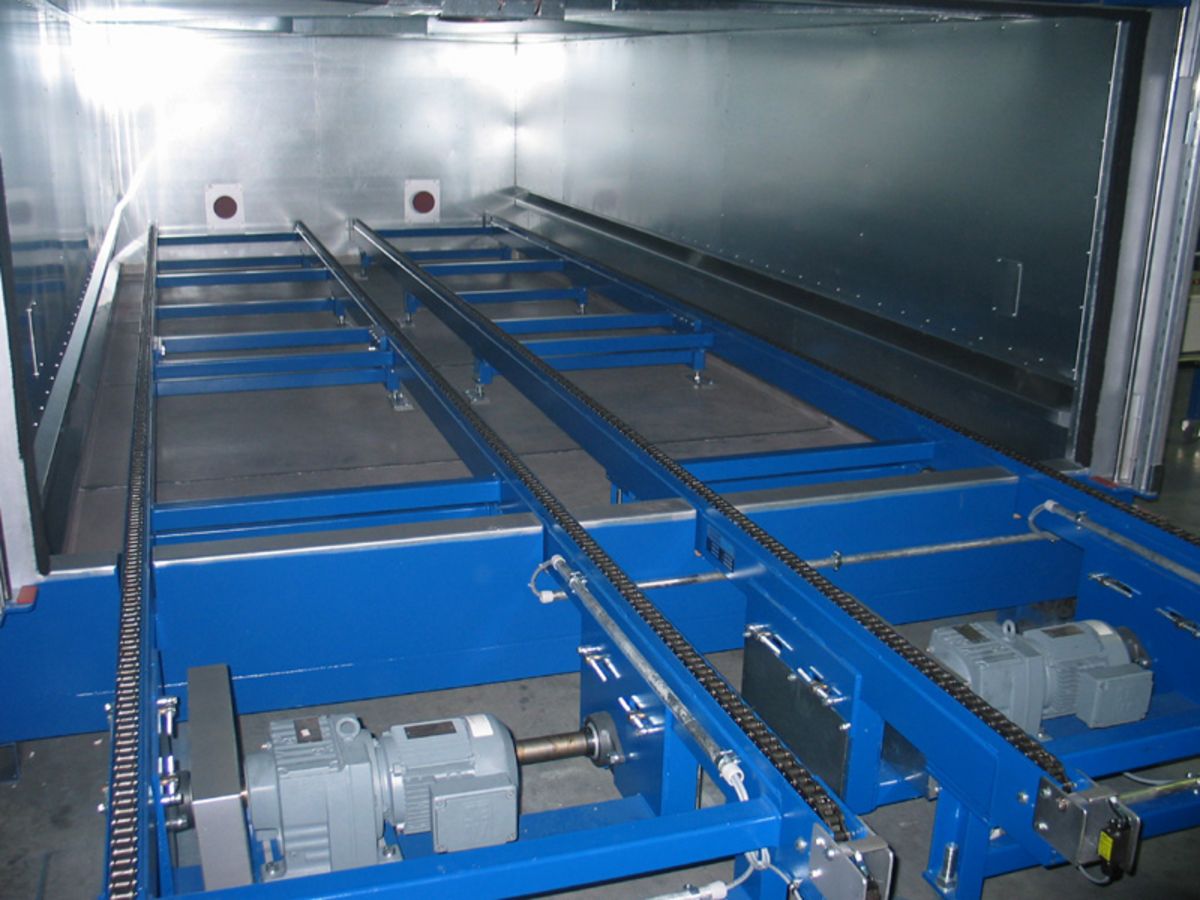

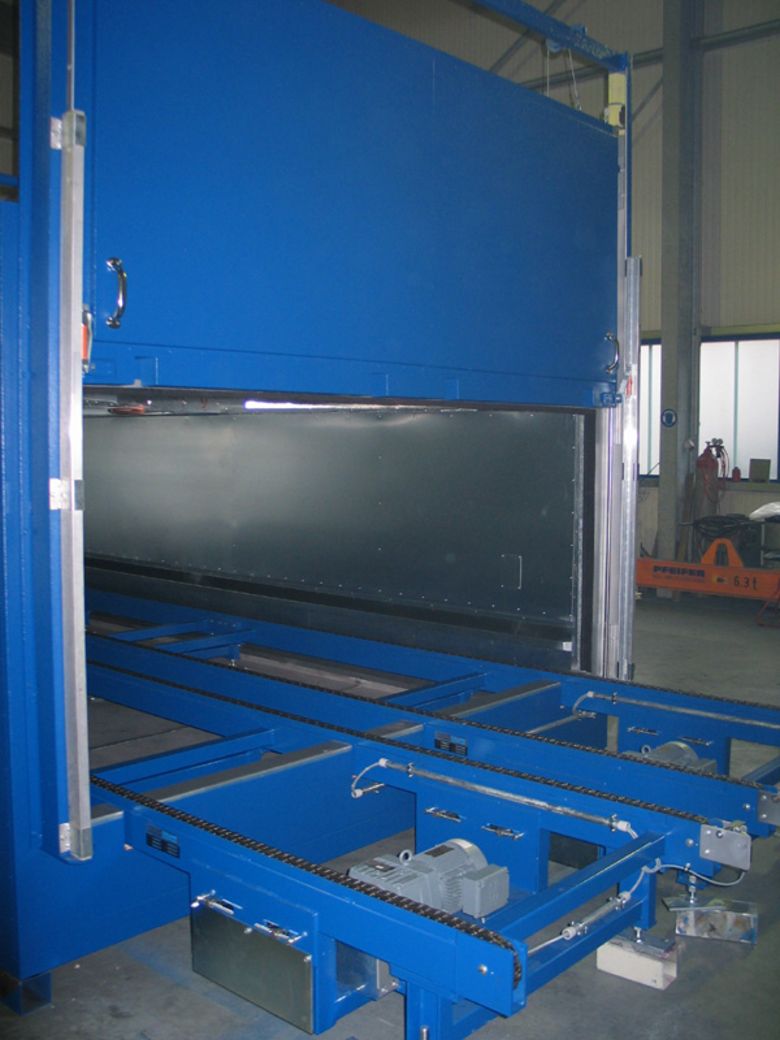

Heating cabinet with chain conveyor
The need of 10.000 kg heated raw material per each batch makes a large preheating facility neccessary. The quick loading and deloading by only one operator is possible by the use of the automatic chain conveyor and the driven vertical door.

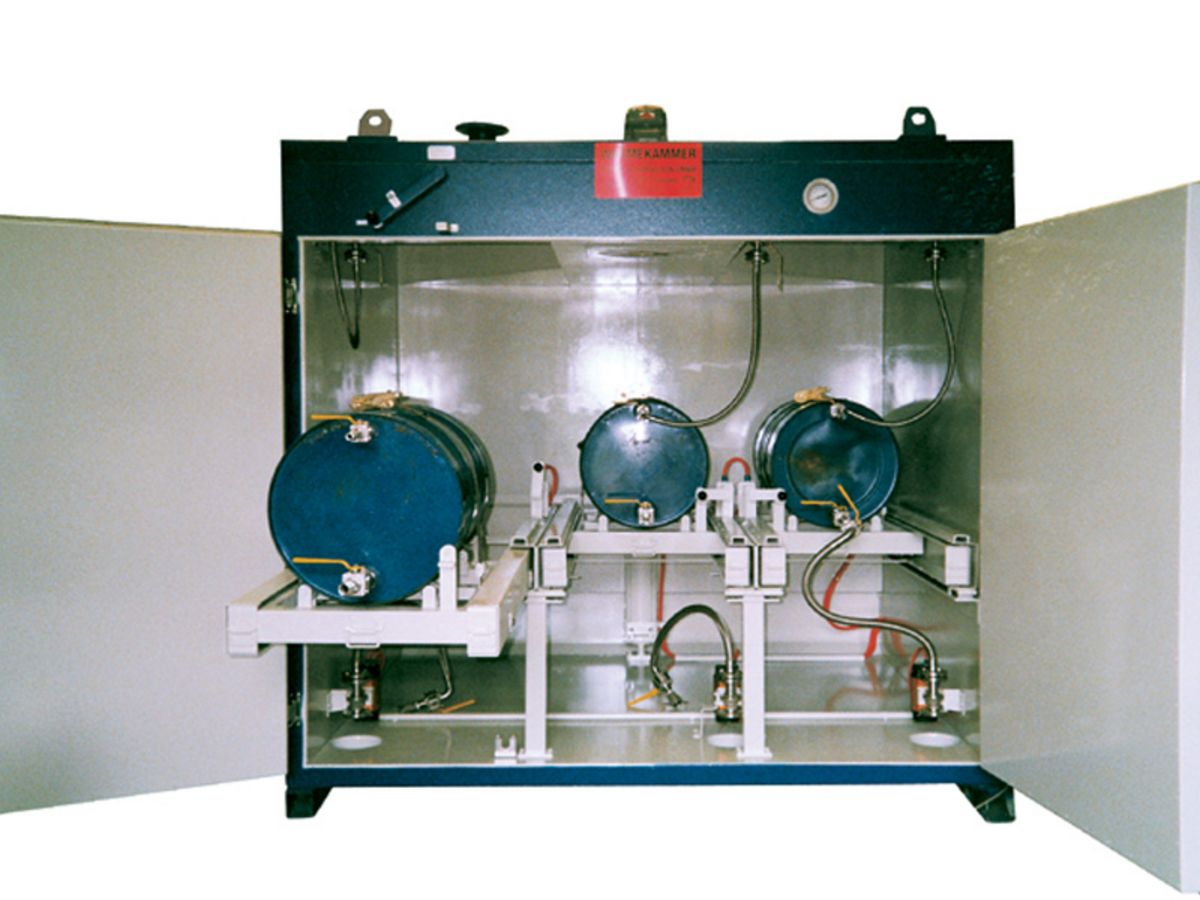

Heating cabinet for horizontal drums
The need of 10.000 kg heated raw material per each batch makes a large preheating facility neccessary. The quick loading and deloading by only one operator is possible by the use of the automatic chain conveyor and the driven vertical door.

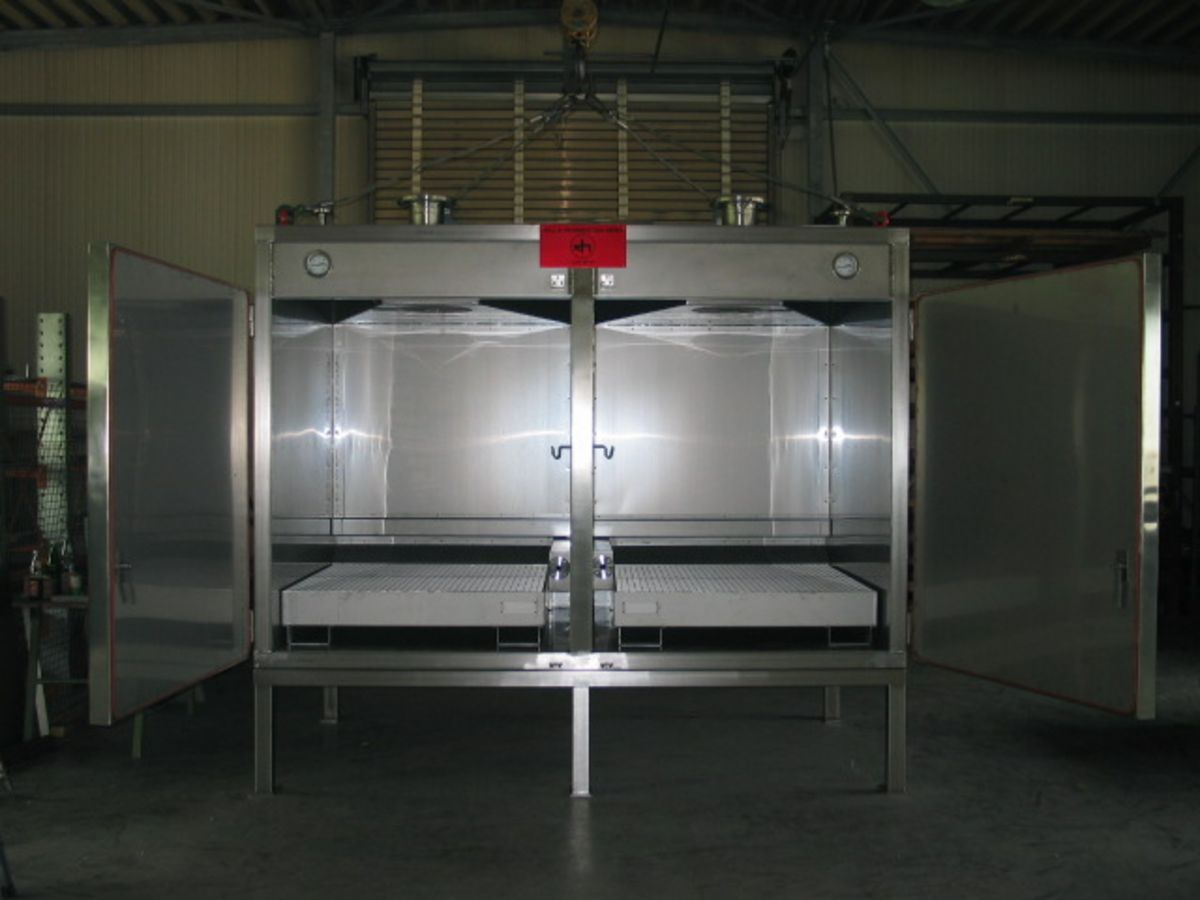

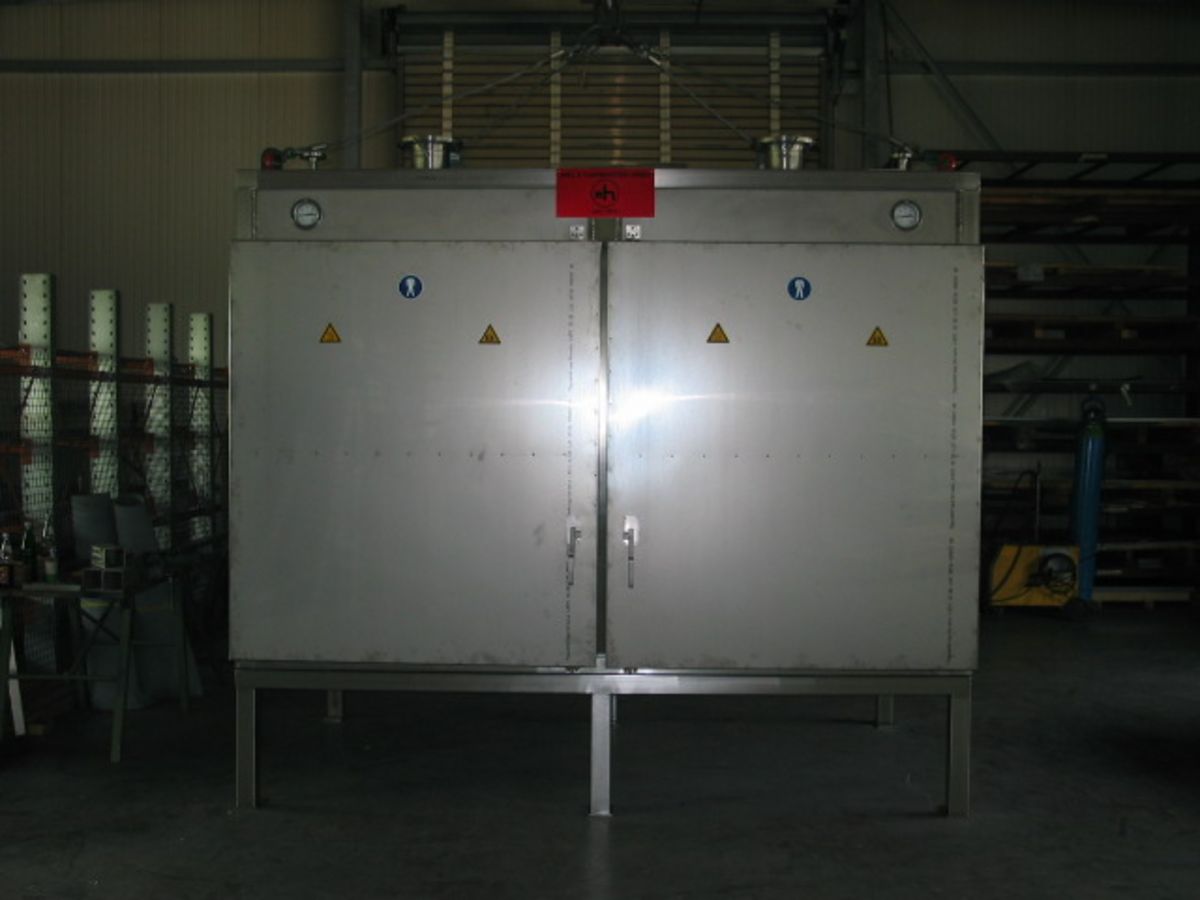

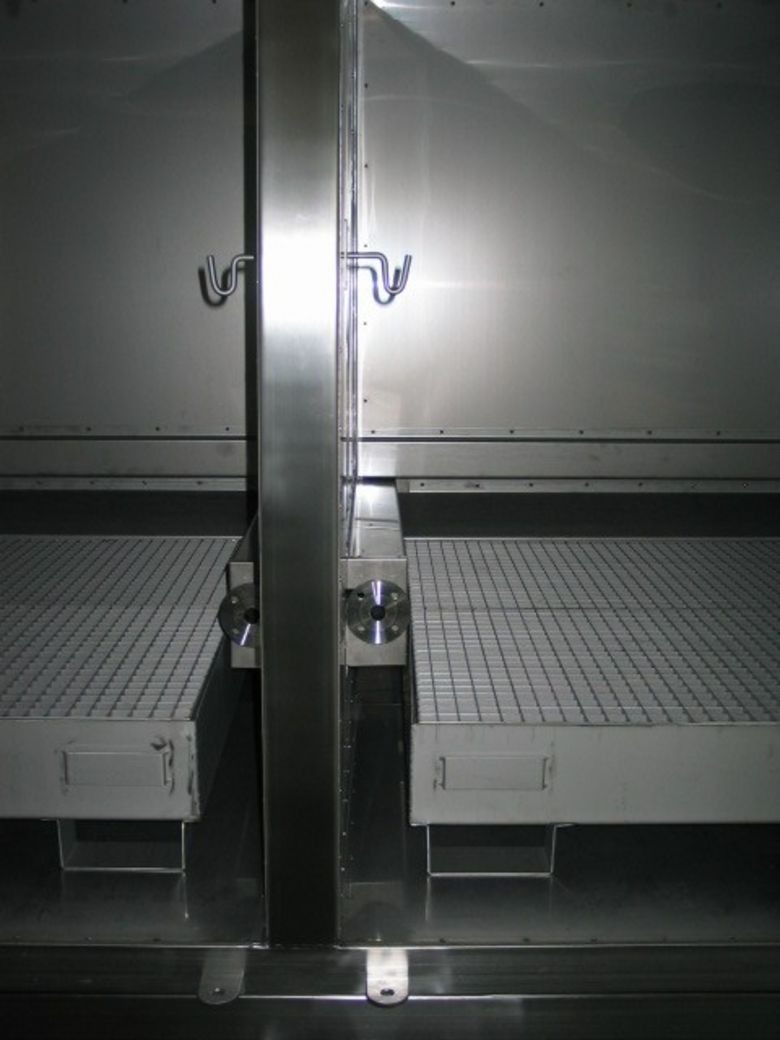

Steam Heating Cabinet/EX for 2 IBCs
Construction completely in stainless steel 1.4571 (SS 316) with collector basins and pumping tubes for direct connection of the IBCs to the pumping line. High sub construction for fitting into an existing production plant.

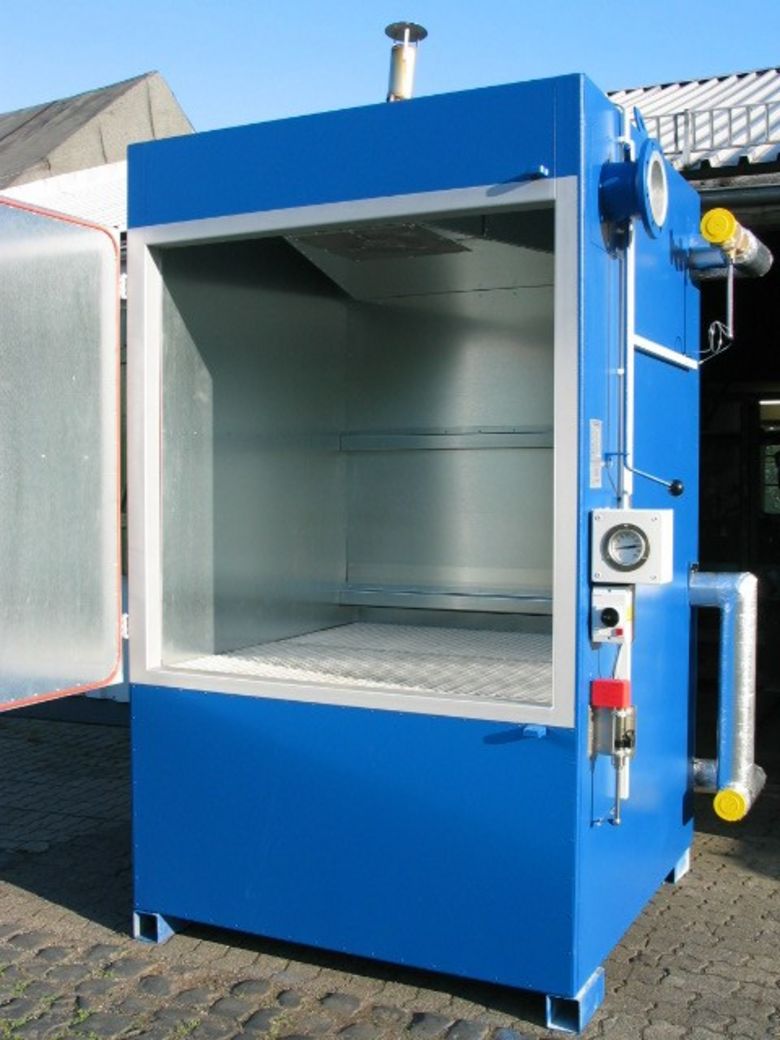

Steam Heating Cabinet for the take-out of material rests out of open 200 l drums
The cold drums without lids are placed on top of the grids above the basin. The material in the drums is melted and drops down into the basin which is also heated by steam passing through tubes mounted on the rear side. The liquid material can be pumped to following processes when it is needed.
Steam heating chamber with 5-trolley capacity
Equipment: Motorized air circulation (including two 5,600 m³/h fans) and temperature controller.
