Drum Heater

Mobile radiators for all application areas

WILL & HAHNENSTEIN electric drum heaters and WILL & HAHNENSTEIN steam drum heaters are mobile radiators which can handle almost any heating problem at your plant or building site.

The proven strength of our product line lies in our wide variety of models and custom elements to match specific needs. Our standard product range includes explosion-protected drum heaters with stainless steel casings. All drum heaters come with full documentation and a CE stamp.

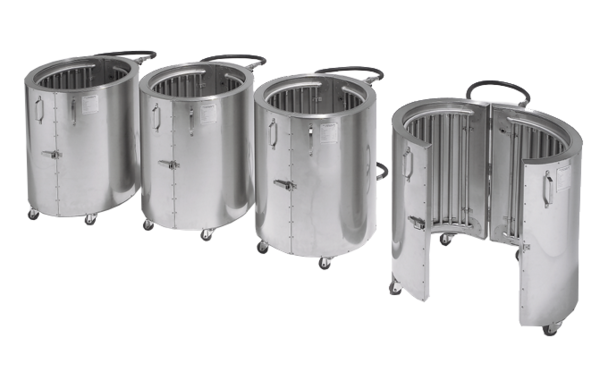

A sample model: Electric drum heater Type (P) IDR

1. Insulated lid
All drum heaters can come equipped with integrated or separate lids (TDR). Oblong holes and pump openings can be made in any size on request.

2. Central switch box
The switch box contains all easy-to-operate switches and regulators wired for connection. The thermostat and safety regulator guarantee a safety.

3. Protective casing
The interior sheet metal case of the (P) IDR drum heater that protects the radiator elements from the drum has a special black coating for proper heat reflection.

4. Insulation
The double-walled case of the (P) IDR can be opened up, and is insulated with mineral wool and reflector foil facing outward. The drum is completely contained by the floor heater, lid and walls of the drum heater.

5. Floor heater
The BDR floor heater onsists of a circular heating plate on which the drum sits hermetically. A thermostat and a covered limit control "n. ICE 519" for unsupervised operation are fitted to the bottom of the insulated casing.

6. Mobility
Solid caster wheels guarantee easy handling and longevity. The floor heater on casters doubles as a drum trolley.

7. Drum sizes
We can handle drums of all sizes:
Drum sizes can range from 50L, 100L, 200L, 220L, 350L, 400L to 500L and beyond. Special barrels, kegs, IBCs and containers pose no problem for us!

Overview of Product Types and Technical Data

TypeLitreEnergie ca. LitrePowerInside/ Outside ø mm
Whole height
/- length mm including swivel rollers
CDR/12
BDR/12
TDR/12
50-60
50-60
50-60
230V/50Hz
230V/50Hz
-
1,5 kW
1,0 kW
-
470/560
450/-
550/-
500
80
130
IDR/25
BDR/25
TDR/25
90-110230V/50Hz
230V/50Hz
-
2,0 kW
1,5kW
-



515/-
-
-



680
80
130
IDR/45
BDR/45
PIDR/45
PBDR/45
TDR/45
200-220230V/50Hz
230V/50Hz
400V/50Hz
400V/50Hz
-
4,0kW
1,5kW
4,0kW
1,5kW
-
650/-
-
650/-
-
-
975
80
975
80
130
(P)IDR/45with
integrated lid
TDR
200-220230V/50Hz
(400V/50Hz)
4,0kW600/-1320
including to built up switch box
PIDR/90
BDR/90
TDR/90
350-500400V/50Hz
230V/50Hz
7,0kW
2,0kW

840/-
-

-

1250
80
130
DIDR/200
DBDR/200
TDR/200
200-220Stream or hot water

~3,5kW
~1,0kW

depending on steam care
650/-
-
-
975
80
150

Drum tilting frame FASSKULI with support heater and horizontal drum heater Energy approx. litres

FK-HDR/45
FK-HBDR/45
FK-HTDR/45
200-220230V/50Hz
(400V/50Hz)
-
4,0kW
1,5kW
-
650
900long
-
900
700
130
FK-DHBR/200
FK-DHBDR/200
FK-HTDR/200
200-220
-
-
Stream or hot water

~3,5kW
~1,5kW
depending on steam care
650
900long
-
900
700
130

Practical examples you find at: Drum Heaters.
Use by requests our Contactform.


If you want more informations please contact our contact person:

Dorothee Müller

02744 9317 - 11
